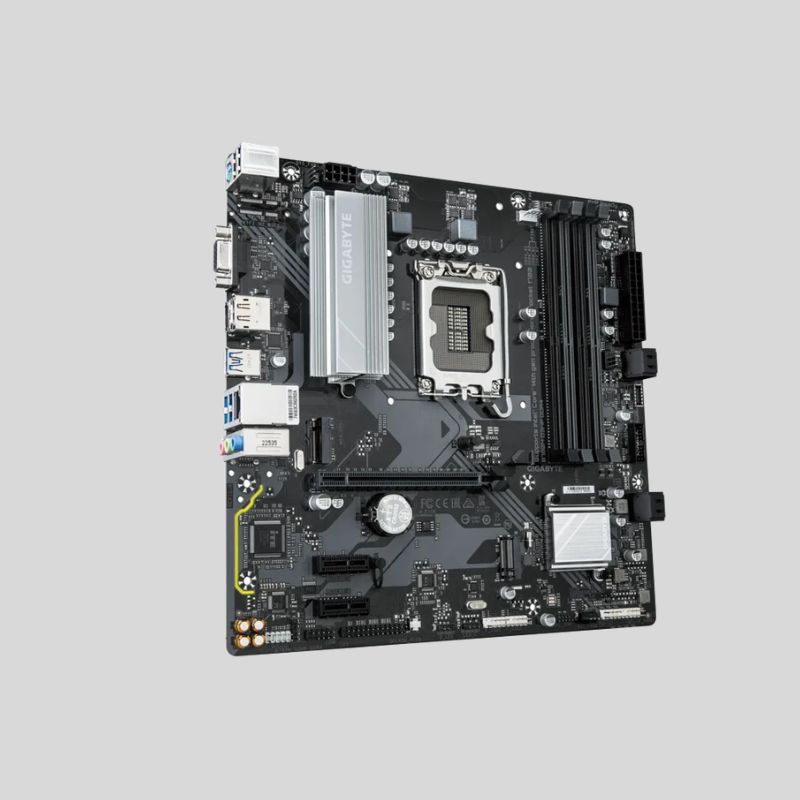

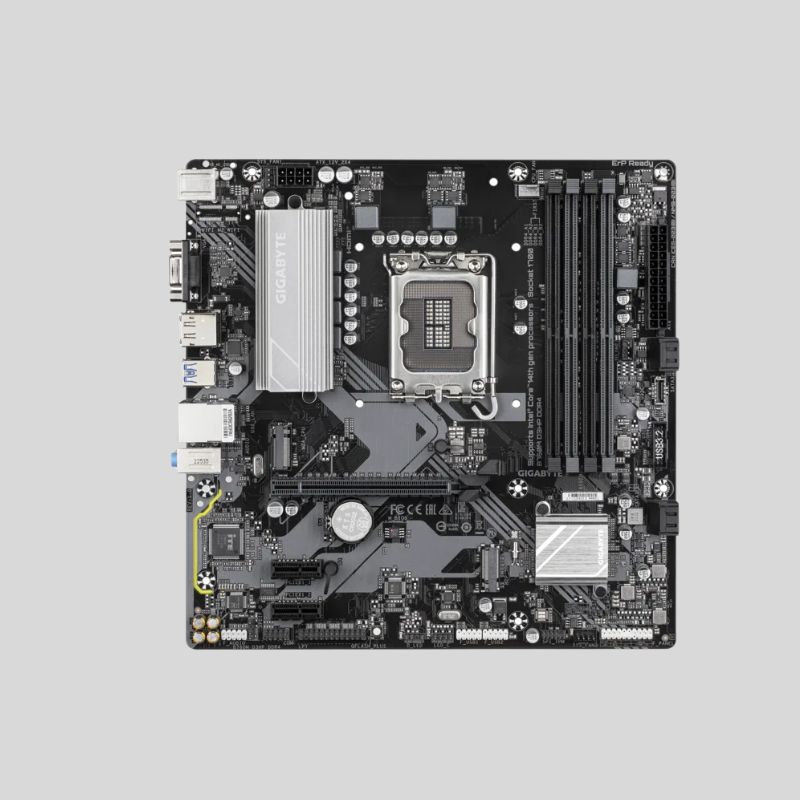

PLACA GIGABYTE B760M D3HP ( B760M D3HP DDR4 ) LGA 1700 | DDR4

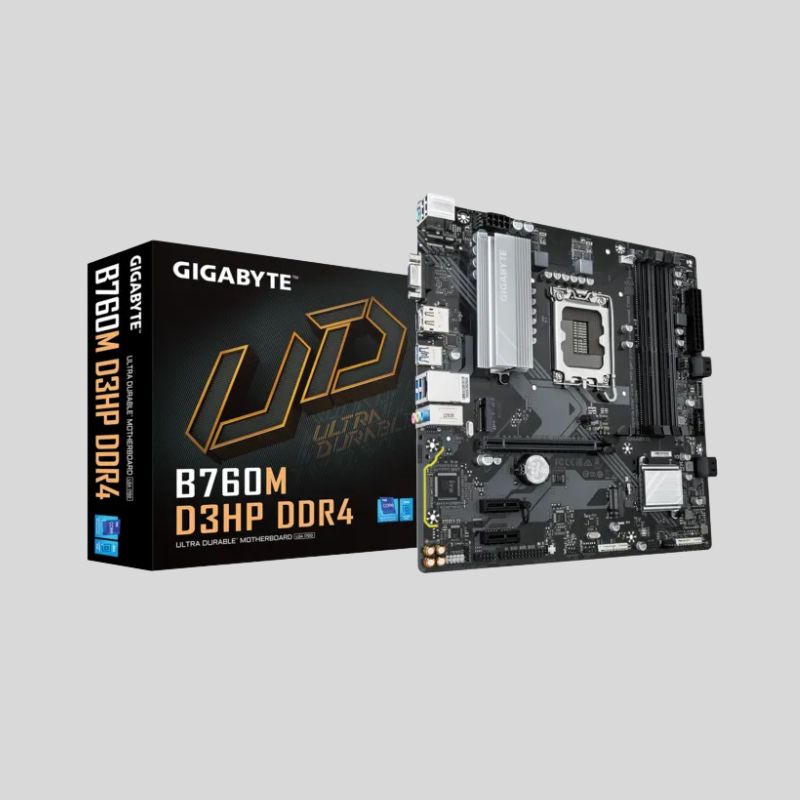

Name: Placa GIGABYTE B760M D3HP DDR4 LGA 1700
SKU: 003834
Price: 109.00 USD
Availability: InStock

Codigo: 003834

1 disponibles

$ 109.00

This item is low in stock.

Item(s) left: 1

1 disponibles

Añadir a la lista de deseosEliminar de la lista de deseos

Codigo: 003834 Categorias: Placa madre, Placa Intel Marca: Gigabyte

Descripción

La GIGABYTE B760M D3HP DDR4 es una placa base Micro-ATX diseñada para aprovechar al máximo los procesadores Intel® Core™ de 12ª, 13ª y 14ª generación con socket LGA 1700. Equipada con el chipset Intel B760, ofrece excelente estabilidad, rendimiento y compatibilidad para configuraciones gaming y de productividad avanzada.

Esta motherboard soporta memoria DDR4 de hasta 128GB en doble canal con frecuencias de hasta 5333MHz (OC), permitiendo un desempeño fluido en multitarea, edición, streaming y videojuegos. Incorpora ranura PCIe 4.0 x16 para tarjetas gráficas de última generación, almacenamiento M.2 NVMe PCIe 4.0 de alta velocidad y múltiples puertos SATA para discos adicionales.

Su diseño VRM digital híbrido garantiza una alimentación estable y eficiente, mientras que su sistema de protección Ultra Durable™ mejora la vida útil del equipo. Además, cuenta con conectividad USB 3.2, LAN Gigabit y audio de alta definición para una experiencia completa.

Ideal para armar PCs compactas de alto rendimiento con excelente relación calidad-precio.

📄 Descripción Corta (≤160 caracteres)

Placa GIGABYTE B760M D3HP DDR4 LGA1700 compatible con Intel 12ª/13ª/14ª Gen, PCIe 4.0, M.2 NVMe y hasta 128GB DDR4.

🔎 Palabras Clave (5 para Rank Math)

Gigabyte B760M D3HP DDR4
Placa base LGA 1700 DDR4
Motherboard Intel B760 micro ATX
Placa Gigabyte para Intel 13 generación
B760M D3HP especificaciones

⚙ Ficha Técnica

Marca: GIGABYTE
Modelo: B760M D3HP DDR4
Factor de forma: Micro ATX
Chipset: Intel B760
Socket: LGA 1700

🔹 Compatibilidad CPU

Intel Core 12ª Gen (Alder Lake)
Intel Core 13ª Gen (Raptor Lake)
Intel Core 14ª Gen (según actualización BIOS)

🔹 Memoria

4 x DIMM DDR4
Hasta 128GB
Frecuencia hasta 5333MHz (OC)
Dual Channel

🔹 Expansión

1 x PCIe 4.0 x16
2 x PCIe x1

🔹 Almacenamiento

2 x M.2 NVMe (PCIe 4.0/3.0 según configuración)
4 x SATA III 6Gb/s

🔹 Conectividad

LAN Gigabit Ethernet
USB 3.2 Gen 1
USB 2.0
HDMI
DisplayPort
Audio HD 7.1 canales

🔹 Otros

Ultra Durable™
Protección contra sobretensión
BIOS UEFI

Procesador
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset
Intel® B760 Express Chipset

Memoria
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Gráficos Integrados
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Puertos de Expansión
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Interfaz de Almacenamiento
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Conectores del Panel Trasero
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Controlador de E/S
iTE® I/O Controller Chip

Monitorización H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus

Software Incluido
Norton® Internet Security (OEM version)
LAN bandwidth management software

Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Diseño
Micro ATX Form Factor; 24.4cm x 24.4cm
